CONSTRUCTION MACHINERIES

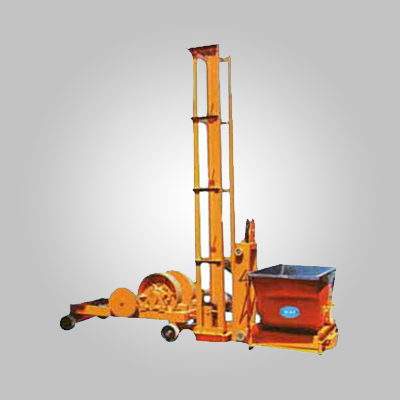

Pulling Mechanism
Specification
Capacity : 1/2, 1 Ton
Drive : Friction Drive Fibers
Prime Mover : 10 HP Electric Motor with Starter (or) 10HP Diesel Engine
Trolley Speed : 30 mt/ min.
Wire rope : 11 mm Usha martin make
Dive from Prime motor : Chain Drive or Belt Drive
Size of Mast angle : 65 x 65 x 6 angle suitably braced
Salient features
It is designed to suit both motor or engine as per clients requirement
It is mounted on 4 no 0f CI wheels for easy shifting
Prime Mover : 10 HP Electric Motor with Starter (or) 10HP Diesel Engine
All th rolling parts are fixed with ball and taper roller bearings
All th mating parts are provided with grease cups and nipple
First quality fibers and breaks linings are used
Concrete Mixture
Specification - 7/5 Cu.ft. Capacity Concrete Mixer
Capacity : 7/5, Cu.ft. (150/120 Litres)
Prime Mover : 5 H.P. Diesel Engine (or) 5 H.P. or 3 H.P. Electric Motor
Capacity : 5/3 ½ Cu.ft. (150/105 Litre)
Prime Mover : 5 H.P. Diesel Engine (or) 5 H.P. or 3 H.P. Electric Motor
Specification - 10/7 Cu.ft. Capacity Concrete Mixer
Capacity : 10/7, Cu.ft. or 300/210 Lit
Prime Mover : 6 H.P. Air Cooled or Water Cooled Diesel Engine (or) 5 H.P. Electric Motor with starter.
Power Transmission : Roller and Bush Chains.
SAND SIEWER
1 to 5 Hp Single Phase

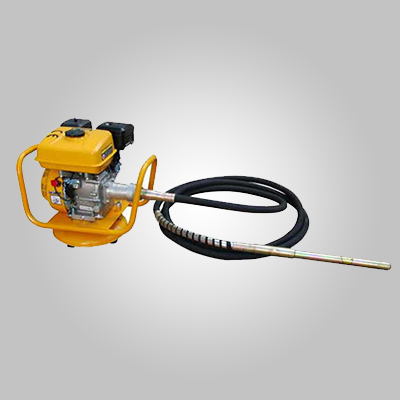

Concrete Vibrator
Specification
Prime Mover : 2 H.P. MK 12 Greaves Petrol start Kerosine run 4 stroke engine
| Dia (mm) | Length of the Needle (mm) | Where it is used |
|---|---|---|
| 25 | 375 | Closely placed in re- inforcements |
| 40 | 450 | Deep beams and columns |
| 60 | 600 | Floors, Dams etc |

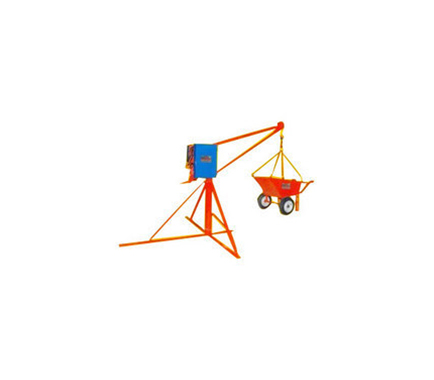

Construction lift
Specification
Capacity : 1, 25 Cu.ft.,
Pipe : 5’ Long I” b class
Box Gauge : 14 SWG H.R. Sheet

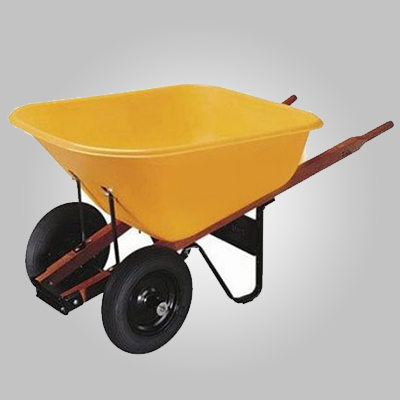

Wheel Barrows
Specification
Capacity : 1, 25 Cu.f.,
Pipe : 5’ Long I” B class
Box Gauge : 14 SWG H.R. Sheet
Our Experience technical team has highly expertise in selecting suitable conveyor for the specific requirement of customers.

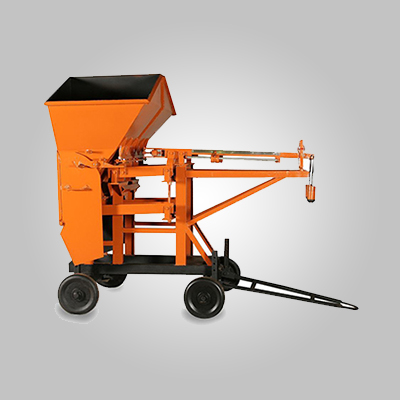

Weigh Batcher
Specification
Capacity : 60 / 80 / 110 Lits.
Wheel : 12” x 2” x 1’ Solid Rubber Wheel with C.I. Rim or with pneumatic scooter tyres.

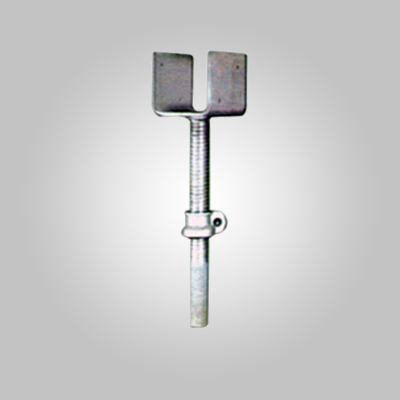

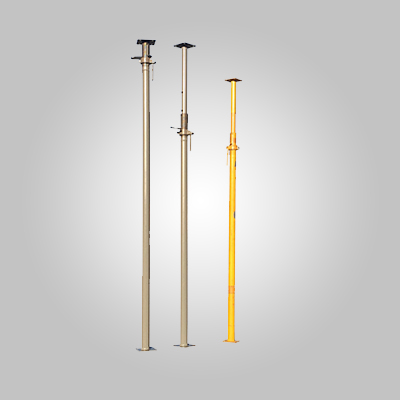

Adjustable Telescopic steel props
Specification
| Size | Height Closed | Height Extended | Safe Axel Load closed | Safe Axel Load opened |
|---|---|---|---|---|
| E0 | 1.05 m | 1.80 m | 3500 kg | 3000 kg |
| E1 | 1.75 m | 3.12 m | 3200 kg | 2300 kg |
| E2 | 1.98 m | 3.35 m | 3000 kg | 2200 kg |
| E3 | 2.15 mt | 3.7 m | 2900 kg | 2000 kg |
| E4 | 3.20 | 4.87 m | 2300 kg | 1150 kg |

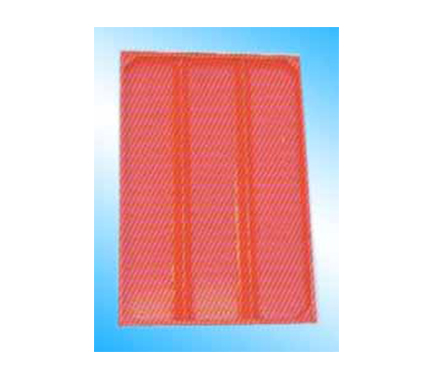

Adjustable Floor Form
Specification
1150x450
900x300
900x450
800x450

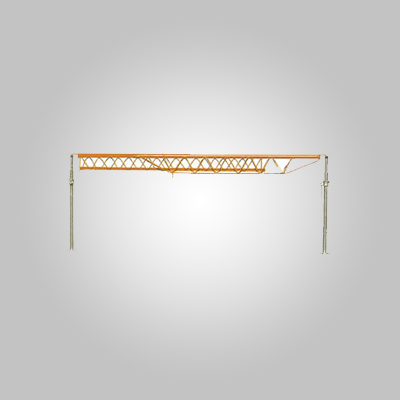

Light weight spans
Specification
1150x450
900x300
900x450
800x450

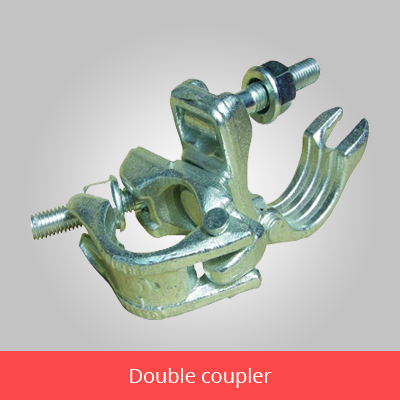

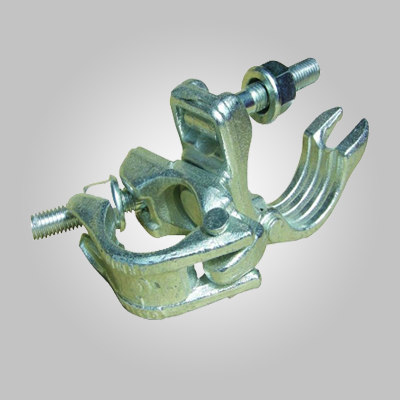

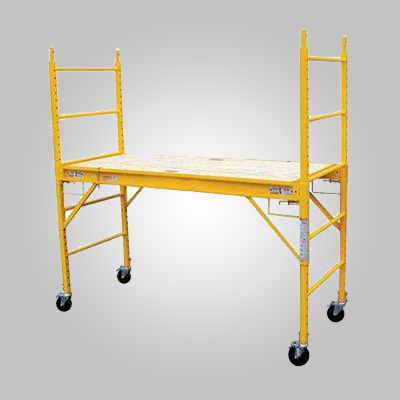

Scaffolding units & accessories
Specification
2 no.of vertical

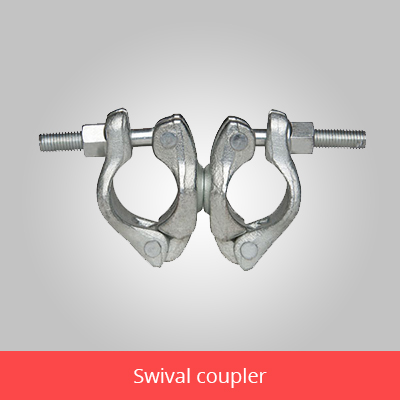

1 no.of Cross Bar with ‘C’ clamps assembly pipes used 40mm np. & 50mm np. Socket pipes with 5/8” bolts
Features
Save time & labour
Strength & Safety
Eliminates cost of cutting & wastage of timber
Special Scaffolding Unit for Builder’s Hoist Made Out of 1 ½ “ B Class Pipe as Vertical and all Bracing will be 1” B Class Pipe.
